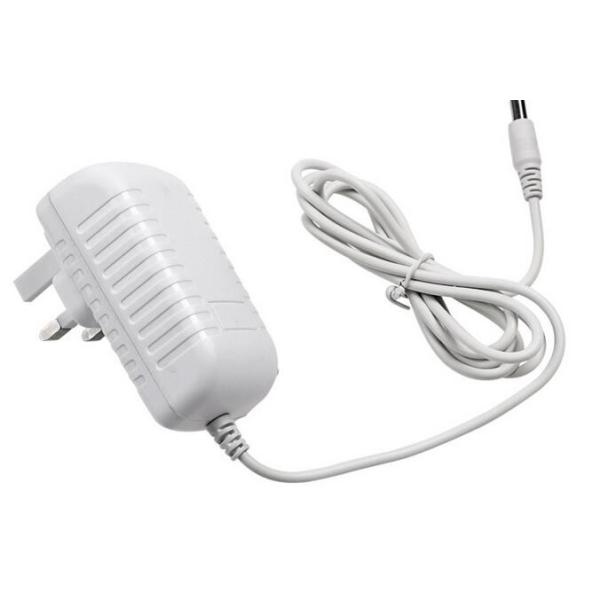

White 12 Volt Power Adapter With ABS Plastic Materials , Single Output Type

Product Categories
HK Anenerge Co., Limited
Contact Now

White 12 Volt Power Adapter With ABS Plastic Materials , Single Output Type

  • 1
  • 2
  • 3

Brand Name : OEM/Anenerge

Model Number : AE-12001000

Certification : CE Rohs FCC UL TUV GS CB SAA KC

Place of Origin : Shenzhen

MOQ : 1pcs

Price : 1-3usd/pcs

Payment Terms : Western Union,Paypal,T/T

Supply Ability : 1000000pcs/month

Delivery Time : 3-5days

Packaging Details : Neutral white box packaging

Material : ABS plastic

Power : 12W 24W 30W

Output : 1.5a 2a 2.5a

Packaging : White box

Certificates : CE Rohs FCC UL SAA GS TUV

Warranty : 2 years

Contact Now

12v power adapter 1.5a 2a 2.5a 12w 24w wall mount dc power supply for LED strips

  • Place of Origin: Guangdong, China (Mainland)
  • Model Number: AE-1200100
  • Output Type: Single
  • Connection: Desktop
  • Input Voltage: 100-240VAC
  • Output Current: 2.4/1.25/0.6/0.5
  • Power factor: >0.7
  • Name: 12V DC Power Adapter for led strip module
  • Input voltage: 5/12/24/36v
  • Efficiency: 88%
  • Power: 12/15/14.4/18w
  • Option: EU/UK/AU/US/CN
  • Size: 72X37X32MM
  • Keyword: 12V DC Power Adapter
Input Characteristics Voltage Range 100-240Vac
Minimum Voltage 90Vac
Maximum Voltage 264Vac
Frequency 50/60Hz(47-63Hz)
Efficiency >85% @100%Load (Test at input 115Vac/60Hz , 230Vac/50Hz.)
Stand-by power consumption 0.2W Max @100V
0.5W Max @240V
Output Characteristics Output 5v 1200mA / 6v 1000mA / 12v 500mA / 15v 400mA
Protection Over Voltage/Over Current/Short Circuit
Safety details High-voltage test 3KV/6S
Mechanical Specifications Case material PC or PC+ABS
Weight 55g
Dimensions(L*W*H) 58x39x28mm (not include input pins)
Input Pin US/UK/EU/AU/KC (Customize)
Output Connector 5.5*2.1*10mm type (Customize)
Polarity Center positive (Customize)
Cord 1.5m 22AWG
Certificate ETL GS CB RoHS CE FCC SAA
warranty 3 years
Package PE bag+white Box

Input characteristic
input voltage (Minimum) 100-240VAC
Input Frequency 50/60Hz
Input Plug EU,UK,AU,US,CN
Output characteristic
Output Voltage 5/12/24/30V
Output voltage tolerance ±5%
Load Current 200/250/500/1200mA
Ripple Noise Max 120mVP-P
Output Power 6W
Plug EU,UK,AU,US,CN
Protections
1 internal over thermal shutdown protection
2 short circuit protection
3 Over voltage protection
4 input power over current protection
Environmental requirement
Operating Temperature 0 ℃ to 40 ℃
DC Cable 1 meter.1.2meter,1.5 meter,1.8meter

Applications:

can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.

  • Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
  • Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
  • Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
  • Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power electric appliances, electric tools, audio-video products, mini TV, decorative lighting, massager, LED lighting, electric bicycle battery charger, small size LCD TV and set top box, air cleaner, LCD, computer monitor, etc.
  • Other equipment: industrial automation control, military equipment, scientific research equipment, industrial control equipment, electric power equipment, medical equipment, semiconductor refrigeration and heating, computer chassis, instrument power supply, printer, testing equipment, and almost any other portable type equipment.
